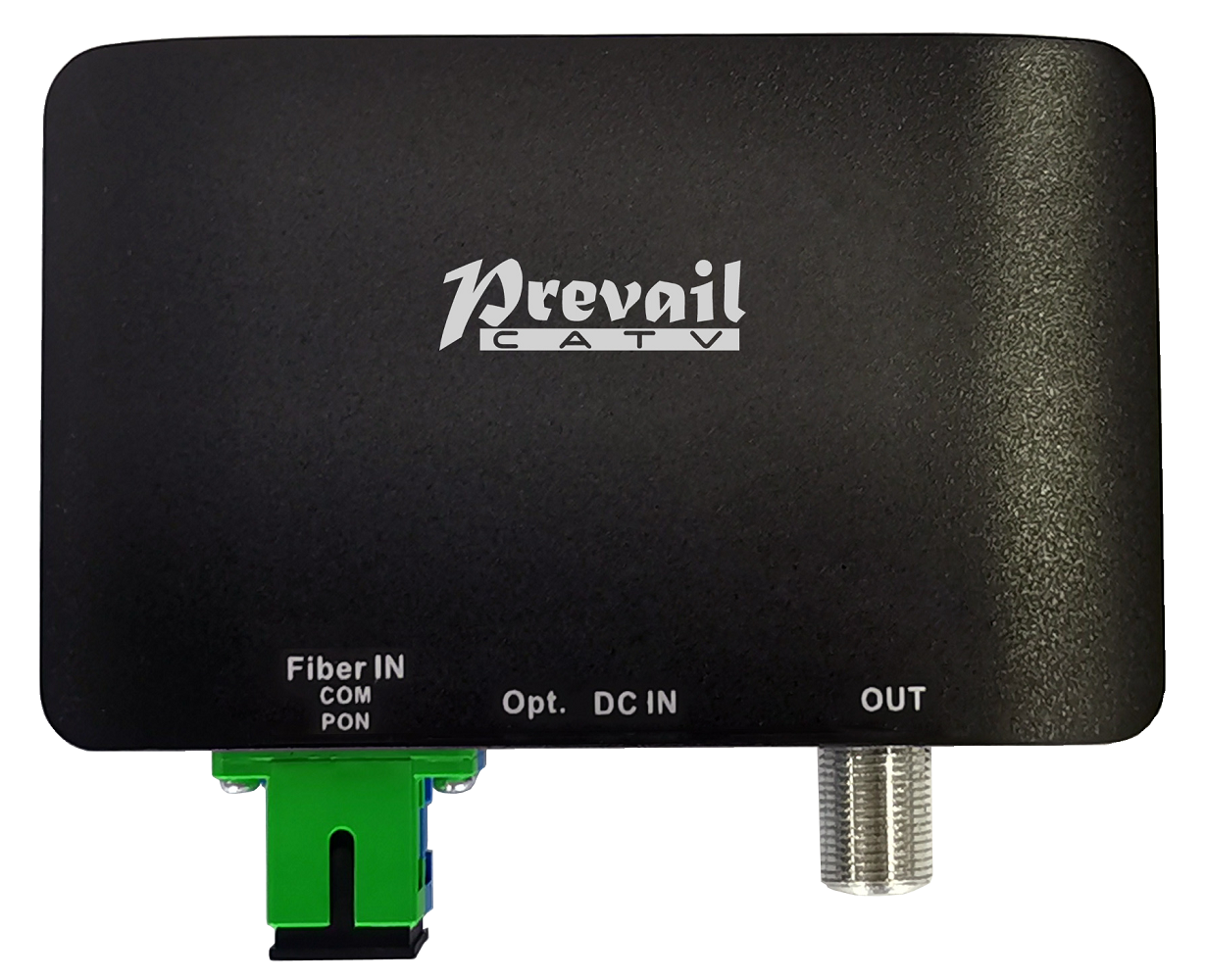

Plastic housing, indoor optical receiver with WDM, main functions are: with WDM, optical AGC function, with optical power indicator, metal shielding frame for internal RF circuit, power adapter, compact structure, etc., 10GPON wavelength WDM is optional.
Plastic housing, indoor optical receiver with WDM, main functions are: with WDM, optical AGC function, with optical power indicator, metal shielding frame for internal RF circuit, power adapter, compact structure, etc., 10GPON wavelength WDM is optional.
* Frequency range 45MHz ~1.2GHz.
* Input optical power range -18～0 dBm.
* Optical AGC range -15～-5 dBm
* Low noise MMIC amplification.
* Power consumption is only 2W.
* SC/LC - APC/UPC interface(optional)。
* Built-in CWDM，optional G/E PON or 10G/E PON.
* Power adapter optional +5V or +12V.
Optical Parameters
|
Item |
G/E PON |
10 G/E PON |
|
Operating wavelength |
1260-1650 nm |
1260-1650 nm |
|
CATV wavelength |
1540-1560 nm |
1540-1560 nm |
|
PON wavelength |
1310,1490 nm |
1270,1310,1490,1577nm |
|
Insertion loss |
＜0.7dB |
＜0.7dB |
|
Isolation Com-Pass |
＞35dB @1490 |
＞35dB @1490,1577 |
|
Isolation Ref-Pass |
＞35dB @1310 |
＞35dB @1270,1310 |
|
Return loss |
＞45dB |
＞45dB |
|
ResponsivitymA/mW |
＞0.85 |
＞0.85 |
|
Connector |
SC/APC, SC/UPC, LC/APC, LC/UPC |
|
RF Parameters
|
|
Parameter |
Unit |
Specification |
Remark |
|
RF |
Input optical power |
dBm |
-18 ～0 |
|
|
AGC range |
dBm |
-15 ～ -5 |
|
|
|
Equivalent noise current |
|
≤5 pA/rt(Hz) |
|
|
|
Frequency Range |
MHZ |
45 ～1218 |
|
|
|
Flatness |
dB |
±0.75: 45 ～1003 ±1: 1003 ～1218 |
Pin： -13dBm |
|
|
Return loss |
dB |
≥14 |
Pin： -13dBm |
|
|
Output level |
dBuV |
≥80 |
3.5% OMI / CH， within AGC range |
|
|
C/N |
dB |
≥ 44 |
-9dBm receiving，59CH PAL-D，3.5% OMI / CH |
|
|
C/CTB |
dB |
≥ 58 |
||
|
C/CSO |
dB |
≥ 58 |
||
|
MER |
dB |
＞32 |
-15dBm receiving，96CH QAM256，3.5% OMI / CH |
|
|
BER |
|
＜1E-9
|
||
|
Others |
Power supply |
V |
DC12V/DC5V |
220V,50HZ |
|
Power supply interface |
|
Inside diameter 2.5mm @DC5V |
Round plug，Outer diameter 5.5mm |
|
|
Inside diameter 2.1mm @DC12V |
||||
|
RF interface |
|
Female/Male F port |
||
|
Power consumption |
W |
＜3 |
|
|
|
ESD |
KV |
2 |
|
|
|
Operating temperature |
℃ |
-10～+55 |
|
|
|
Operating humidity |
|
95% No condensation |
|
|
|
Environmental requirements |
|
ROHS 2 |
|
|
|
MTBF |
|
15 years |
||
|

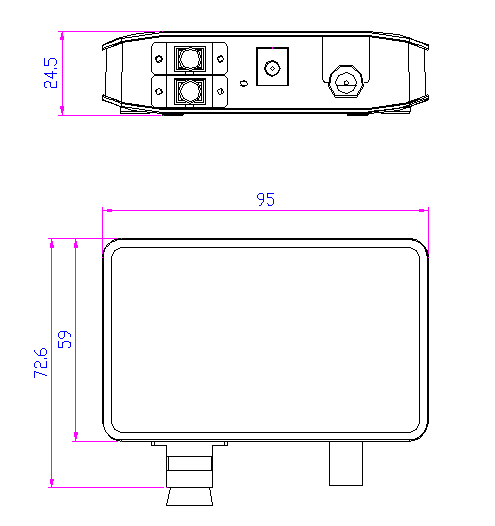

Dimensions |
mm |
95*60*25（Excluding optical adapter and RF connector） |
||
|
Optical power indicator |
Green：-15～0dBm Orange：＜-15dBm Red：＞ 0dBm |
|||
