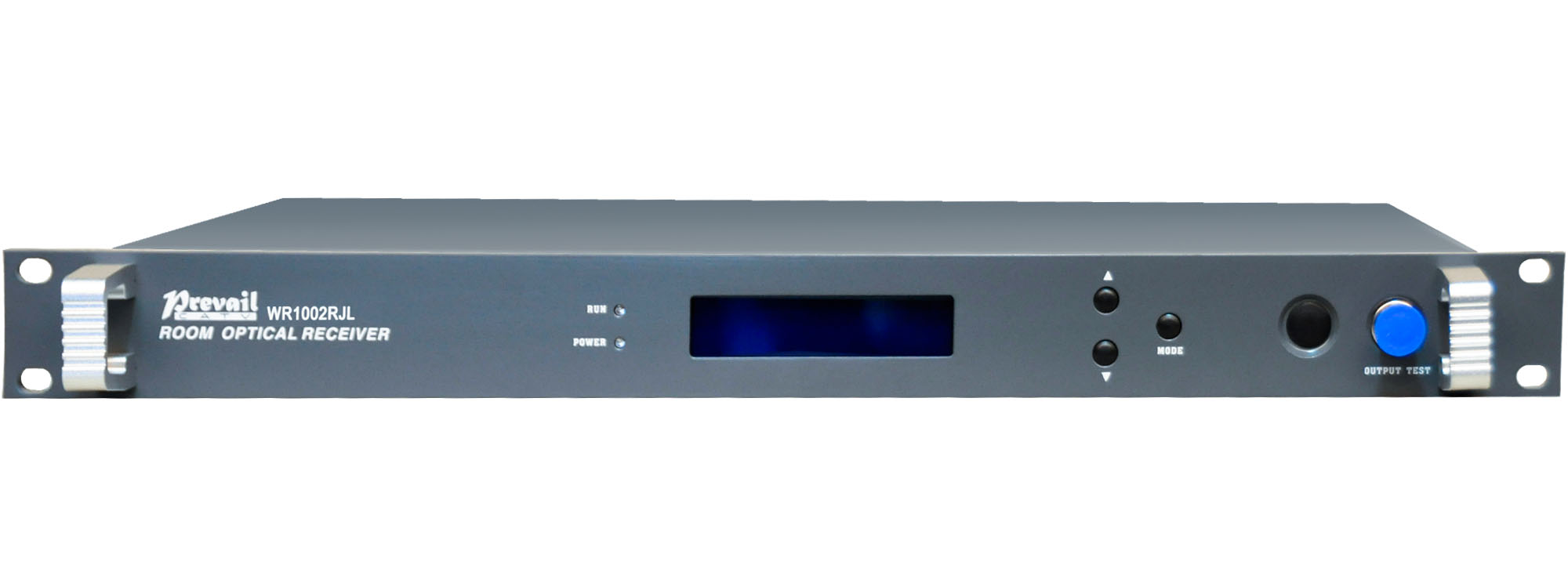

WR-1004-RJL is our new high-class 4-way output CATV network optical receiver. The pre-amplifier adopts all-GaAs MMIC, post-amplifier adopts GaAs module. Optimized circuit design coordinate with our 10 years design experience, the device achieve high performance index. Microprocessor control, digital display the parameters that make the engineering debug very convenience. It is the main product to build CATV network. The other model is two-way output optical receiver: WR-1002-RJL.
* 5 ~ 1003MHz, Frequency division optional
* Optical AGC Range: -8 ~ +2 dBm
* Support optical AGC, Switchable to MGC.
* GaAs power double output.
* Maximum Output Level≥ 112dBµV
* Variable attenuator and equalizer.
* Hot backup dual power modules.
* C/N≥ 51dB @-1dBm, C/CTB≥ 65dB , C/CSO≥ 60dB
* Upstream Optical Output : 1310±10nm, 1 mW.
* Upstream RF Input Range: 75 ~ 85dBµV
* NPR Dynamic Range≥ 15 dB(DFB), NPR≥ 30 dB.
* Operating Temperature: -10℃ ~+55℃
* Operating Voltage: DC 48V or AC220V(50Hz)
* 19”1U:483mm(L)X 345mm(W)X 44mm(H)
|
Item |
Unit |
Technical Parameters |
|
|
Forward optical receiving part |
|||
|
Optical Parameters |
|||
|
Receiving Optical Power |
dBm |
-9 ~ +2 |
|
|
Optical Return Loss |
dB |
>45 |
|
|
Optical Receiving Wavelength |
nm |
1100 ~ 1600 |
|
|
Optical Connector Type |
|
FC/APC, SC/APC or specified by the user |
|
|
Fiber Type |
|
Single Mode |
|
|
Link Performance |
|||
|
C/N |
dB |
≥ 51（-2dBm input） |
|
|
C/CTB |
dB |
≥ 65 |
Output Level 108 dBμV Balanced 6dB |
|
C/CSO |
dB |
≥ 60 |
|
|
RF Parameters |
|||
|
Frequency Range |
MHz |
45 ~862 |
|
|
Flatness in Band |
dB |
±0.75 |
|
|
Rated Output Level |
dBμV |
≥ 108 |
|
|
Max Output Level |
dBμV |
≥ 114 |
|
|
Output Return Loss |
dB |
≥14 |
|
|
Output Impedance |
Ω |
75 |
|
|
Electronic Control EQ Range |
dB |
0～10 |
|
|
Electronic Control ATT Range |
dB |
0～20 |
|
|
Return Optical Transmit part |
|||
|
Optical Parameters |
|||
|
Optical Transmit Wavelength |
nm |
1310±10, 1550±10 or specified by the user |
|
|
Output Optical Power |
dBm |
0.5, 1, 2 |
|
|
Optical Connector Type |
|
FC/APC, SC/APC or specified by the user |
|
|
RF Parameters |
|||
|
Frequency Range |
MHz |
5 ~ 65（or specified by the user） |
|
|
Flatness in Band |
dB |
±1 |
|
|
Input Level |
dBμV |
72 ~ 85 |
|
|
Output Impedance |
Ω |
75 |
|
|
General Performance |
|||
|
Supply Voltage |
V |
A：AC（150~265）V；B：AC（35~90）V；C：DC48V |
|
|
Operating Temperature |
℃ |
-40~60 |
|
|
Storage Temperature |
℃ |
-40~65 |
|
|
Relative Humidity |
% |
Max 95% no condensation |
|
|
Consumption |
VA |
≤ 30 |
|
|
Dimension |
mm |
483（L）╳ 345（W）╳ 44（H） |
|
