  • 5U, 5 slots, 5*16 GPON ports/5*8 XG(S)PON&GPON Combo ports WXGP5000-05E

5U, 5 slots, 5*16 GPON ports/5*8 XG(S)PON&GPON Combo ports WXGP5000-05E

WXGP5000-05E


WXGP5000-05E 5U standard-rack OLT, 4*10GE/GE ports,1*RJ45 (RS232) serial port, 1*RJ45 out-band management interface, GPON business board, 16 ports, XG(S)PON&GPON business board, 8 ports

Product overview

WXGP5000-05E GPON OLT is a frame type GPON/XG(S)PON central office OLT equipment, which complies with ITU-T G.984/ G.987/ G.988 communication industry standards and China Telecom GPON equipment technical requirements CTC2. 0, cooperate with GPON/ XG(S)PON optical network unit (ONU) to provide users with access to various integrated services such as broadband, voice, video, and monitoring.

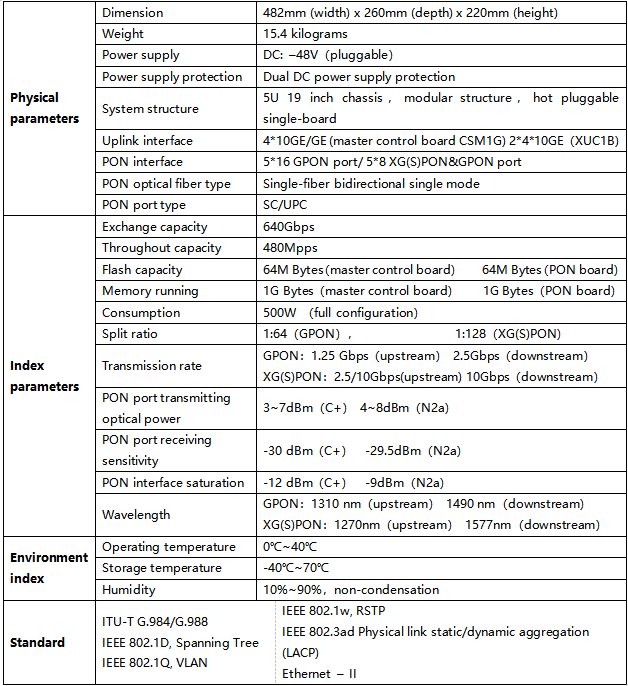

Parameter

Size chart
Download
