WGP3200 Series ONU support 1 GPON uplink fiber port, 1 or more GE/FE auto-negotiation ports, and WIFI function. It can use cooperatively with our GPON OLT and EMS network management system to provide a complete accessing solution of multiple services like broadband, voice and video for users based on GPON technology.
● Provide broadband, CATV, WIFI and other services, single fiber, dual fiber optional.
● Fully compatible with ITU-T G.984
● Support 1 GE +3 FE adaptive interface.
● W models support 802.11n Wifi wireless access, dual antennas.
● Support multicast function.
● Support management methods such as OMCI and TR069,etc.
● Ethernet auto-negotiation and MDI / MDIX auto-detection function.
● Support the circuit loopback detection function of the user-side Ethernet interface.
|
Model |
Description |
|
WGP3200-S |
Four network ports pure data |
|

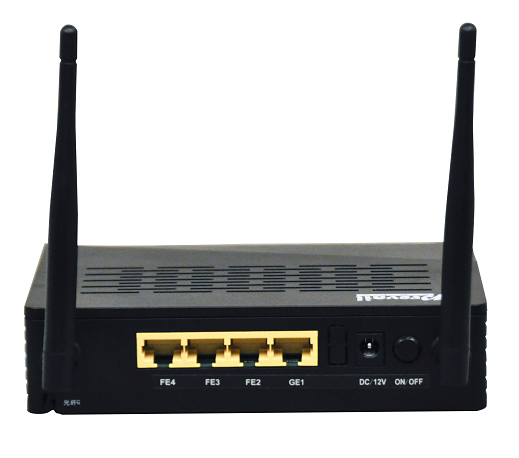

WGP3200-W |
Four network ports data + WIFI |
|

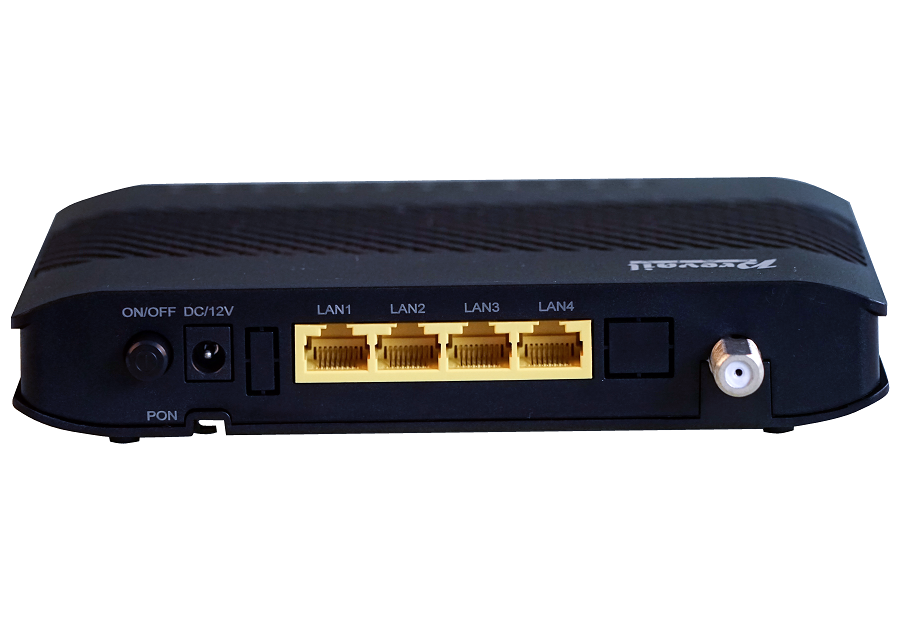

WGP3200-C |
Data + CATV Optical Receiver 2-in-1 |
|

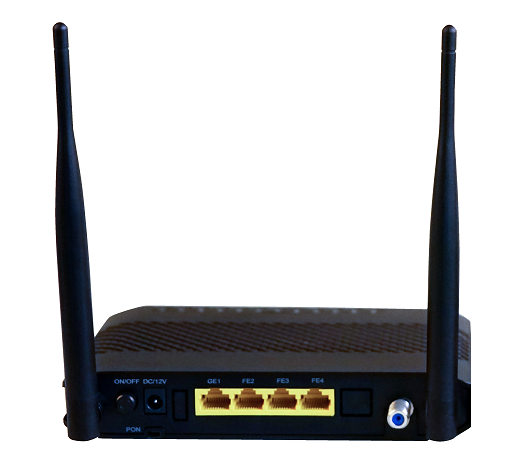

WGP3200-C-W |
Data + WIFI +CATV Optical Receiver 3-in-1 |
|
WGP3200-T |
Data + CATV Optical Receiver 2-in-1 |
|
WGP3200-T-W |
Data + WIFI + CATV Optical Receiver 3-in-1 |
|
Item |
Parameters |
Specifications |
|
Interface |
PON port rate |
Downstream：2.488Gbps Upstream：1.244Gbps |
|
Ethernet port |
1GE+3FE auto-negotiation Ethernet ports. Full/half duplex mode RJ45 connector, support auto MDI/MDI-X Transmission distance :100M. |
|
|
CATV interface |
1*SC/APC optical interface 1*CATV port, male RF port |
|
|
Power port |
Power Adapter +12VDC power supply interface |
|
|
Features |
Optical connector |
SC/PC single mode single fiber |
|
Wavelength |
Transmit1310nm，receive1490nm |
|
|
Optical transmitting power |
0.5～5dBm |
|
|
Receiving sensitivity |
-28dBm |
|
|
Saturated optical power |
-8dBm |
|
|
PON port throughput |
Downstream >980Mbps，Upstream >950Mbps |
|
|
Ethernet port |
1000Mbps or 100Mbps |
|
|
Packet loss rate |
＜ 1x10E-12 |
|
|
Transmission delay |
＜ 1.5ms |
|
|
WIFI index Encryption mode |
Operating mode |
Route and bridge modes, support multiple SSIDs (up to 4), dual antennas |
|
Physical rate |
IEEE802.11n: 300Mbps |
|
|
Frequency Range |
2.412 ~ 2.472GHz |
|
|
Channel |
13 channels, configurable to US, Canada, Europe, Japan, Chinese standards |
|
|
Modulation |
DSSS , CCKandOFDM |
|
|
Coding scheme |
BPSK, QPSK, 16QAM，64QAM |
|
|
Receiving sensitivity |
802.11b: -97dBm@1Mbps，-94dBm@2Mbps，-92dBm@5.5Mbps，-90dBm @11Mbps |
|
|
802.11g:-94dBm@6Mbps, -92dBm@9Mbps,-91dBm@12Mbps， -89dBm@18Mbps， -85dBm@24Mbps， -82dBm@36Mbps， -77dBm@48Mbps,-75dBm@54Mbps |
||
|
802.11n: -70dBm@ MCS1540MHz |
||
|
Max output power |
802.11n:17.5dBm@ MCS1540MHz |
|
|
Encryption mode |
WEP-64/128, TKIP (WPA-PSK) andAES (WPA2-PSK) |
|
|
Management mode |
Support TR069 remote management and upgrade. |
|
|
Support local WEB / CLI management. |
||
|
Management functions |
Status monitoring, configuration management, alarm management, log management. |
|
|
Others |
Shell |
Plastic shell |
|
Power consumption |
＜ 6W：External 12V DC / 1A power adapter. |
|
|
Dimension |
185mm(L) x145mm(W) x35mm (H) |
|
|
weight |
0.32kg |
|
|
Operating temperature |
0～45℃ |
|
|
Storage temperature |
-40～85℃ |
|
|
Operating humidity |
10%～90% Non-condensing |
|
|
Storage humidity |
5%～95% Non-condensing |
