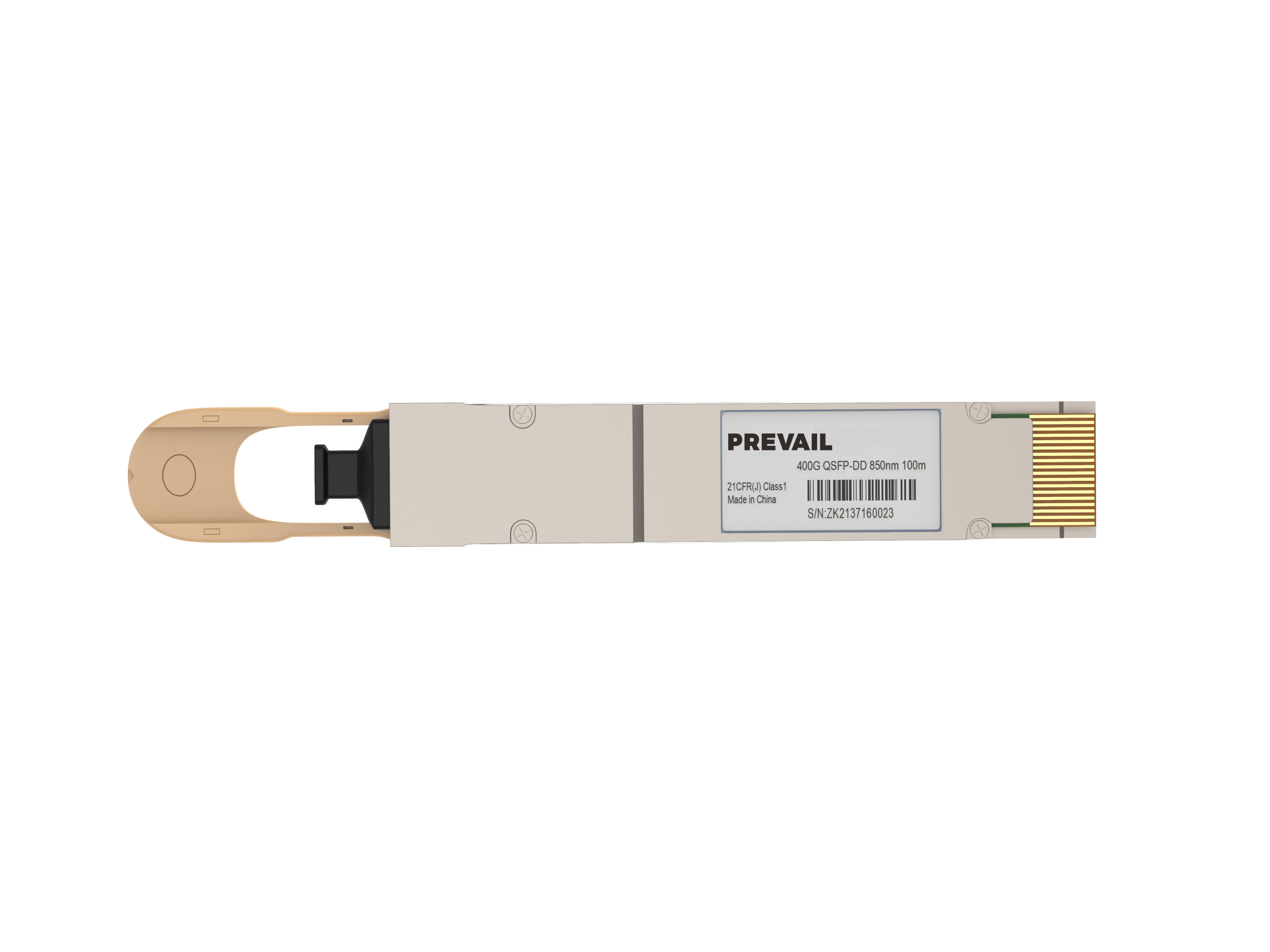

400G QSFP-DD

WLZEFAM1L-DCM


QSFP-DD transceiver for 400G links over multimode fiber

Product overview

Product Features

* Hot-pluggable QSFP-DD form factor
* Support 400G bps aggregate bit rates
* Up to 53.125G bps Data rate per channel
* Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
* MPO-16 APC connector receptacle
* Case temperature range(not environment): 0 ~ +70℃
* Power dissipation: <9W
* Single 3.3V power supply


Product Applications

* Data center
* 400GBASE-SR8 400G Ethernet
Parameter
Size chart
Download
