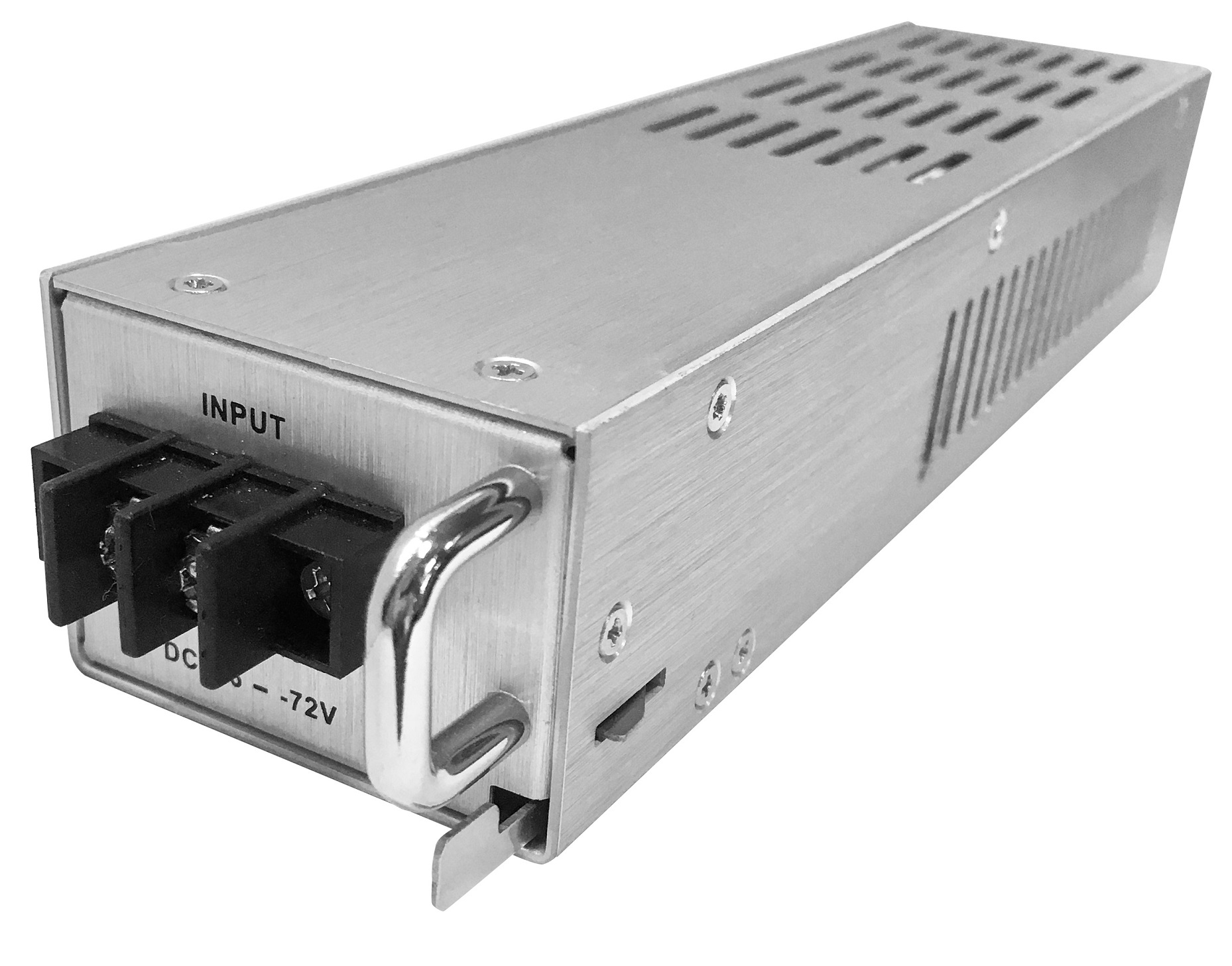

1U low height, 19 inch chassis for choice, complete chassis installation front / rear scheme
Applications:
Industrial automation
Distributed power architecture system
Wireless/ telecommunication solution
Redundant power system
Constant current source system
Features:
*Long capacitor life and long MTBF.
*High efficiency.
*High surge and ESD capacity.
*Low output ripple.
*Low surface temperature.
*In line with the global safety regulations.
*Multiple circuit protection functions.
*Meet all kinds of environmental protection requirements.
|
output power |
5～500W |
|
input voltage |
40～90VDC |
|
output voltage |
5V,8V,12V,24V,48V, Customizable |
|
Output interface |
Customizable |
|
Voltage accuracy |
±2% VDC |
|
conversion efficiency |
＞75% |
|
Impulse current |
25A max |
|
Operating temperature |
-25℃～75℃ |
|
Operating humidity |
95% RH non-condensing |
|
ESD |
8KV |
|
Surge |
4KV |
|
protective measures |
Over current protection output overload short circuit protection self recovery |
